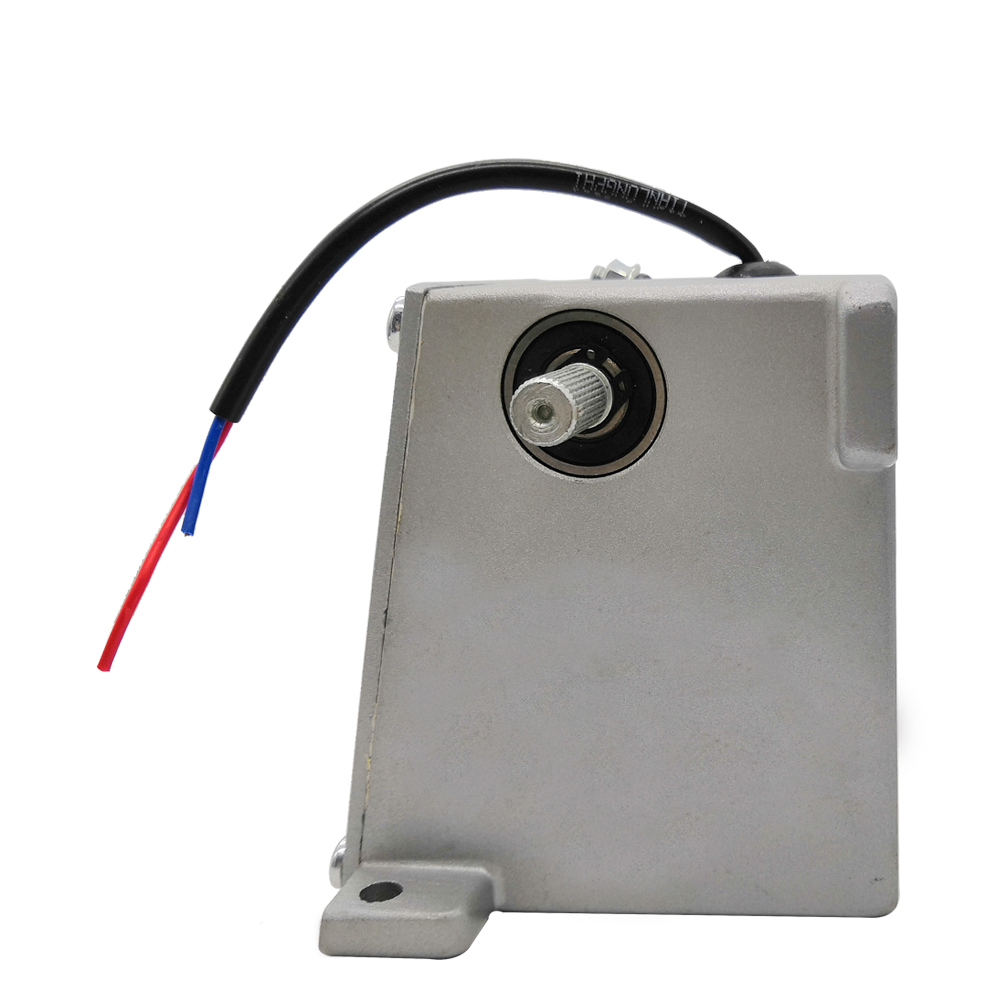

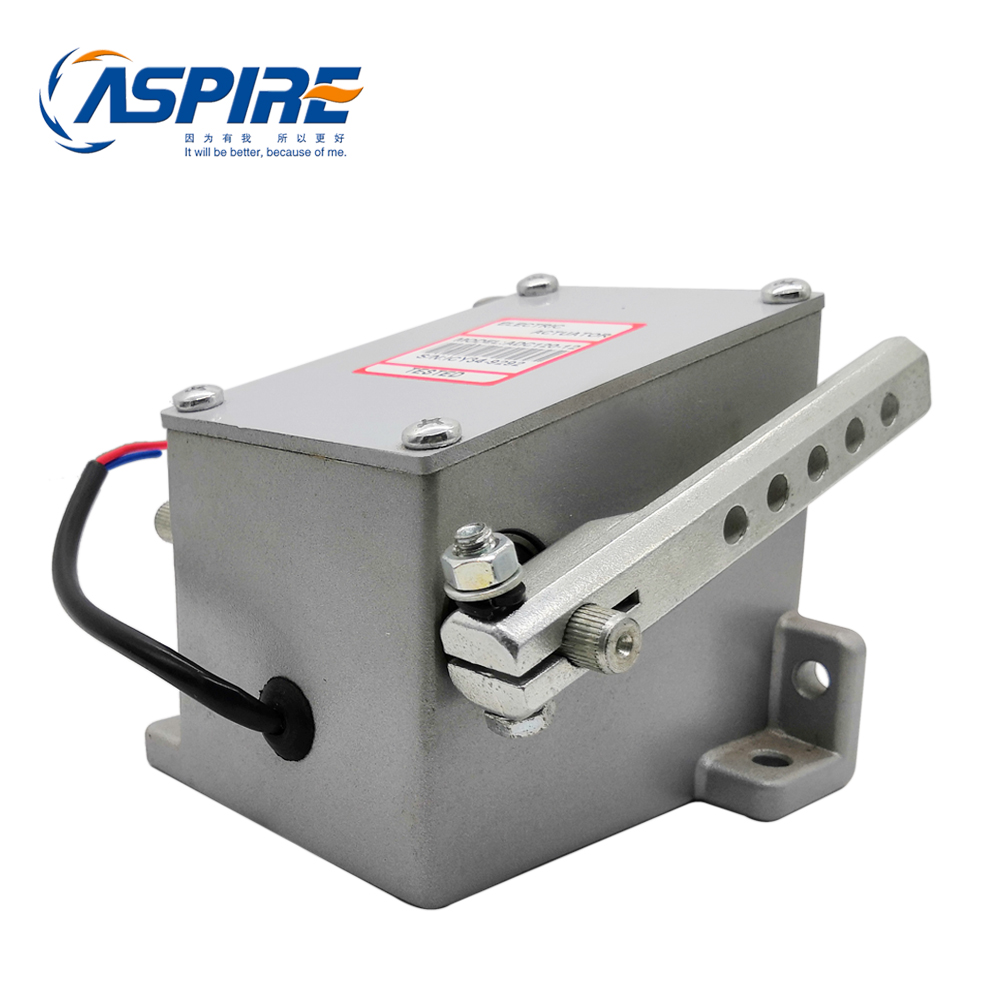

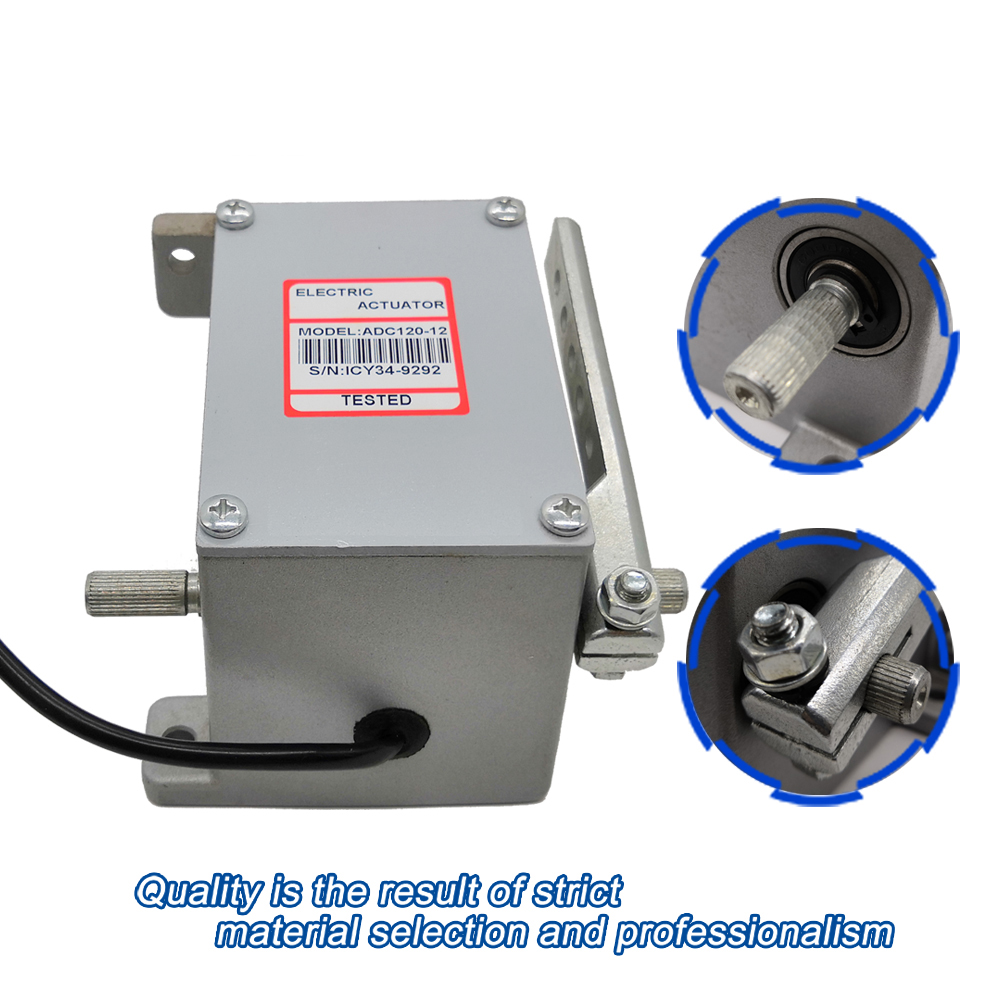

actuator for diesel generator ADC120-24

ADC120 12v 24v actuator for diesel generator ADC120-24

Performance

   Available Torque------------------------------------------------------Max 1.0 lb-ft (1.4 Nm)

   Maximum Operating Shaft Angular Travel----------------------25+-1 degree CW/ CCW

Power Input

   Operating voltage-----------------------------------------------------12, 24 VDC

   Normal Operating Current------------------------------------------2 A at 12 VDC, 1 A at 24 VDC

   Maximum Current-Continuously Rated--------------------------6 A at 12 VDC, 3 A at 24 VDC

Environmental of ADC120S-24 Electric Actuator

   Temperature Range---------------------------------------------------  -65℉ to 200℉(-54℃to 95℃)

   Relative Humidity------------------------------------------------------up to 100%

   All Surface Finishes---------------------------------------------------Fungus proof and corrosion resistant

Physical

Dimensions--------------------------------------------------------------please contact us for product catalog

Weight-------------------------------------------------------------------4.5 lbs (2.05kg), net weight

Mounting--------------------------------------------Any position, electrical connector at the top-preferred
