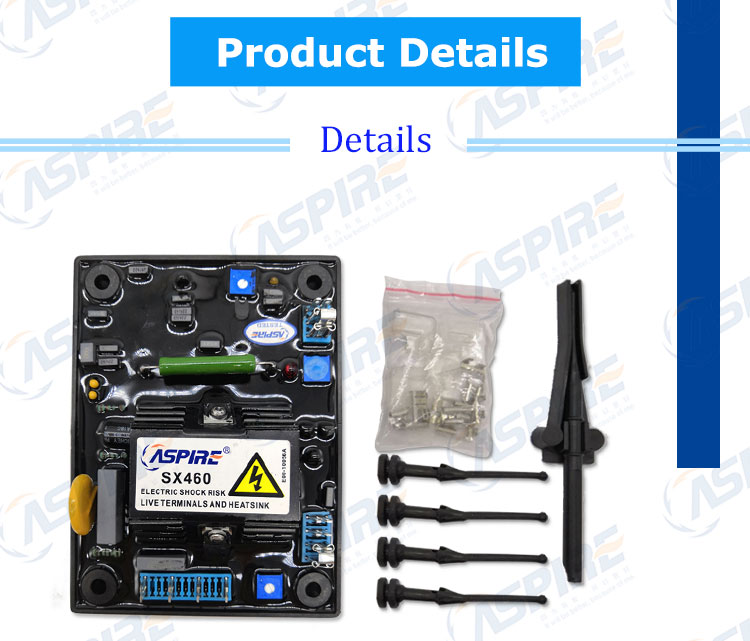

Automatic Voltage Regulator SX460
Automatic Voltage Regulator AVR SX460 replace STAMFORD AVR1
AVR SX460 is a half-wave phase-controlled thyristor type Automatic Voltage Regulator (AVR) and forms part of the
excitation system for a brush-less generator. In addition to regulating the generator voltage, the STAMFORD AVR
circuitry includes under-speed and sensing loss protection features. Excitation power is derived directly from the
generator terminals.Positive voltage build up from residual levels is ensured by the use of efficient semiconductors in the power circuitry of the AVRSX4601.
The AVR SX4602 is linked with the main stator windings and the exciter field windings to provide closed loop control of the
output voltage with load regulation of +/- 1.0%.
For more information about Automatic Voltage Regulator AVR SX460 replace STAMFORD AVR1 , please contact us.
