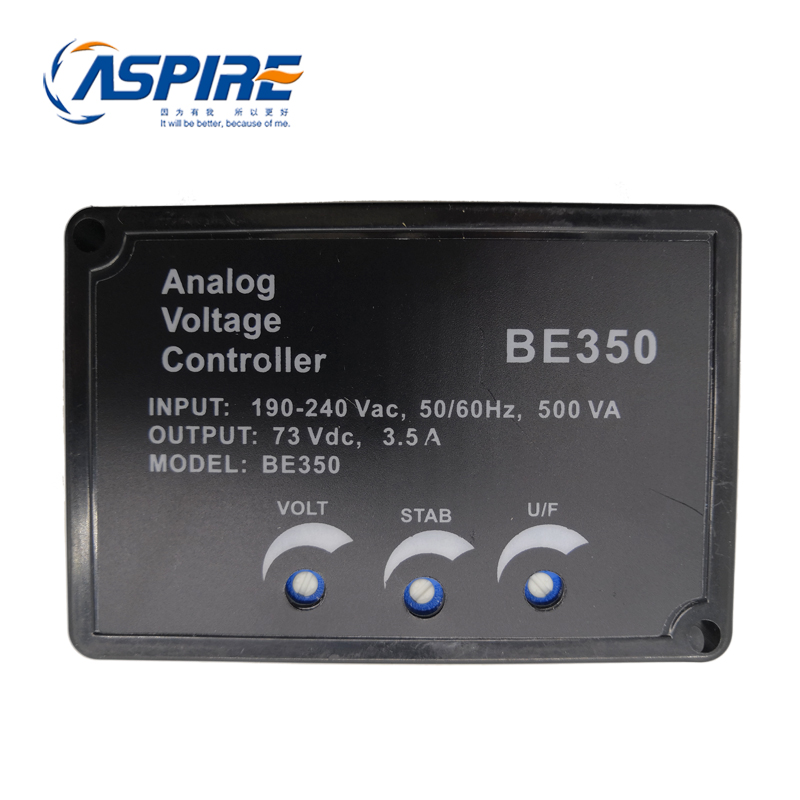

AVR Generator Voltage Regulator BE350

Automatic Voltage Regulator AVR 60KVA BE350 is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage.


Product Name	AVR Generator Voltage Regulator BE350
Sensing/Power input	Voltage	120(95-139Vac)or 240(190-277Vac),1 Phase 2 Wire with copper jumper options
	Frequency	50/60 Hz jumper selectable
Output	Voltage	Max 63Vdc
	Current	Max 10A Continuous 4A Intermittent 7A within 60 seconds,9A For 10 Seconds
Voltage Regulation	< +/-1% (with 4% engine governing)
