AVR VR06

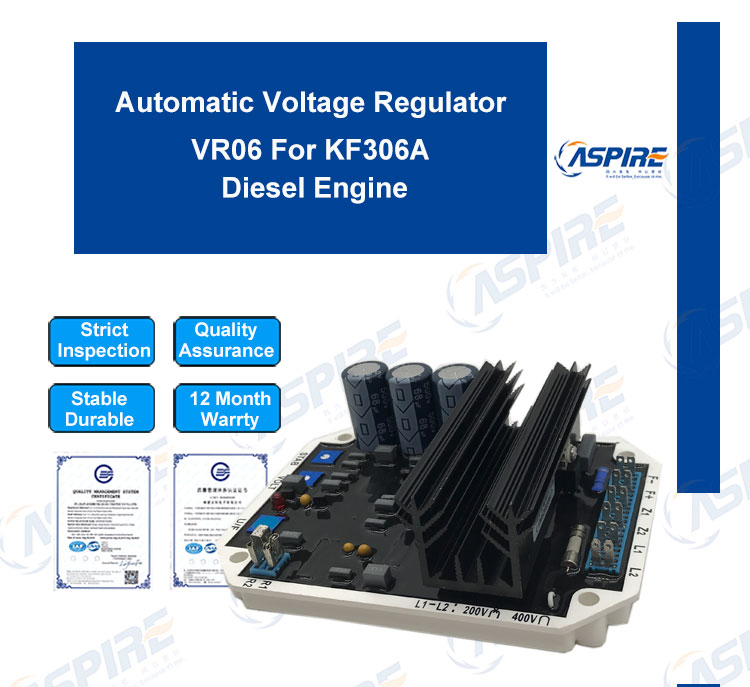

Generator 1000KW AVR VR06

VR06
Quantity:
0.00
Contact Now
add to cart
Buy Now

Generator 1000KW AVR VR06
Measuring power input
Voltage
Frequency
160~265VAC/ 300~550VAC
 50/60Hz single phase
Power Input
Voltage Regulation
Voltage: 90~240VAC single phase
＜土1%(engine speed changes within 4%)
The output voltage
Power: 63VDC max at 240VAC input, 32VDC max at 120VAC input Current: 4ADC continuously, max 7A for 60 seconds
voltage build up
External voltage adjustment
The input terminal needs to have a residual voltage of 5VAC or more
土15% @ 1KQ
Working Environment
Operating temperature: -40~60°C :
Storage temperature: -40~85°C Relative Humidity
Below 95% Vibration: 1.5G@5~30Hz, 5.0G@30~500Hz
