generator control module

Generator ATS Control Module DSE705

DSE705
Quantity:
0.00
Contact Now
add to cart
Buy Now

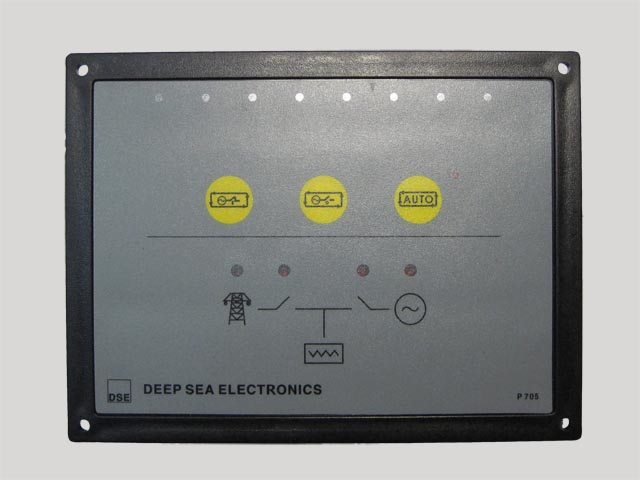

Controller DSE705

Specification
DC Supply
8 Volts to 35 Volts DC Continuous.
Max. Current
Operating 50mA
Standby 10mA
Alternator Input Range
75 Volts (ph-N) to 277 Volts (ph-N) AC (+20%)
Mains Input Range
15 – 277 Volts (ph-N) AC (+20%)
Alternator Input Frequency
50 - 60 Hz at rated engine speed (Minimum: 75V AC Ph-N)
Generator available 45Hz
Generator failed 20Hz
Mains Input Frequency
50 – 60 Hz
Start Output
1.2 Amp DC at supply voltage
Fuel Output
1.2 Amp DC at supply voltage
Auxiliary Outputs
1.2 Amp DC at supply voltage
Dimensions
125mm x 165mm x 28 mm
Charge Fail
12 Volts = 8 Volts CF 24 Volts = 16 Volts CF
Operating Temperature Range
-30°C to + 70°C

Controller DSE705
