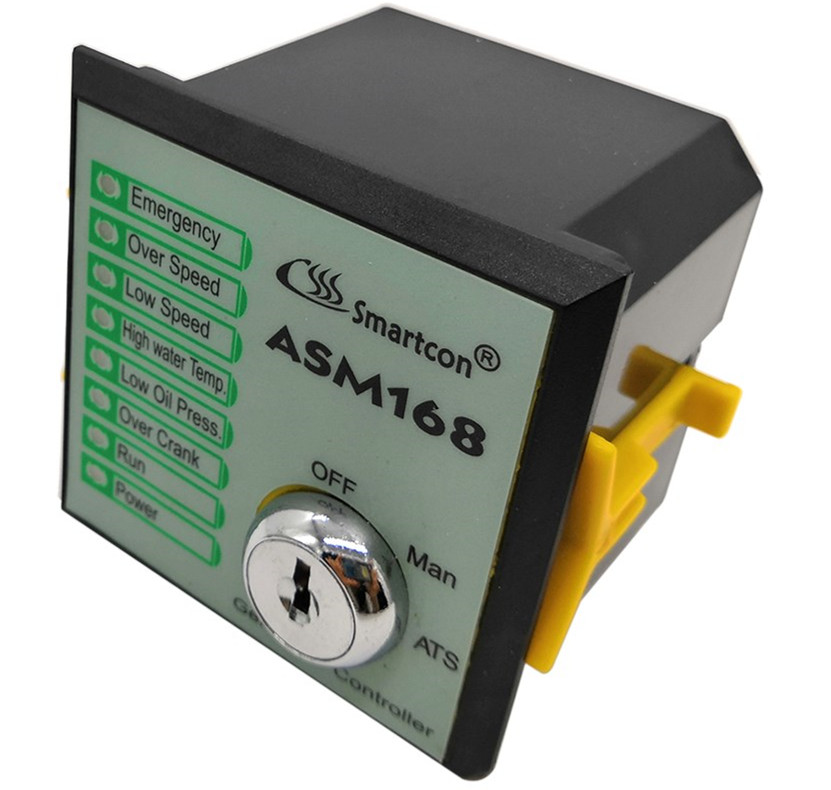

ASM168 is low cost but multi-function diesel engine generator controller. It applies with a key switch and provides
3 kinds of operation mode: Manual, Auto, Off. No special training is required due to the easy operation.
Fault protection includes: Emergency stop, Over speed, Low speed, High water temperature, Low oil pressure,
and Over crank. ASM168 also indicates the running status and power status. ASM168 provides two configurable
output ports,which may designate to control preheater , annunciator, ATS switch and servo motor or electronic
speed regulation for idle starting and idle stopping . So ASM168 is able to provides all control functions for complete
ATS control system .


ASM168 equips with high firm continental-type terminal that provides easy plug in and removal. Furthermore, ASM168
has 10 pins Dip switch for adjusting parameter according tosystem requirements, and make it not only reducing stock
but also meeting the various system specifications. ASM168 build in 5 output powers relays which perform high
power capacity reach to 5 Amp (DC) that saves the wring for connection with extra power relays. No matter in function,
protection or operation performance, ASM168 is your best choice.

1、Specification

◆Power supply: 8 ~ 45V DC
◆Power Consumption：<3 W (Standby <2W)
◆Measuring Frequency：0 ~ 100Hz (100~300V AC)
◆Relay Output ：5Amp 24V DC
◆Dimension (W×H×D)：72mm × 72 mm × 58 mm
◆Panel cut-out (W × H)： 66 mm × 66 mm
◆Ambient Temperature Range：-30℃ ～ 70 ℃

◆Emergency / Stop failure : Lighten—Emergency Flicker—Stop failurOver Speed Shutdown
◆Low Speed ShutdownHigh Water Temperature Shutdown
◆Low Oil Pressure Shutdown
◆Over Crank
◆Run: Lighten—Run in rated speed Flicker—Run in idle speed
◆Power

3、Operation Key Switch



 4、Terminal Description


Number	Description	Code
1	Input power (Battery +)	B+
2	Ground (Battery -)	GND
3	Output starter relay	Motor
4	Output fuel valve relay	Valve
5	Configurable output port1	Aux. Output1
6	Output stop relay	Stop
7	Configurable output port2	Aux. Output2
8	Charge fire point	Charge
9	Emergency shutdown button	Em. Stop
10	Input , High water temp.	HWT
11	Input, Low oil press.	L OP
12	Input , Auto start	ATS
13 , 14	Input , Frequency detect terminal	FD1,FD2



5、 Configurable Output Port Description

1. ◆Alarm: The designed programmable output relay will energize when any failure has been happened.
   The ouptput will remain on until the failure has been reset.

2. ◆Idle Control: The designed programmable output relay will energize in period of start idle delay and stop idle delay. Normally, it is used to electronic speed regulation for idle control.

3. ◆Raise/Drop Speed Control: The designed programmable output relay will energize when start idle delay has finished, and break after entering stop idle delay. Normally, it is used to control gun servo motor.

4. ◆ATS Switch Control: The designed programmable output relay will energize when start signal is in effect and generator set run normally, and break when start signal is noneffective.

5. ◆Preheat Control: The designed programmable output relay will energize in period of preheat delay and cranking, and break after cranking success or cranking failure.
