woodward 9907 018

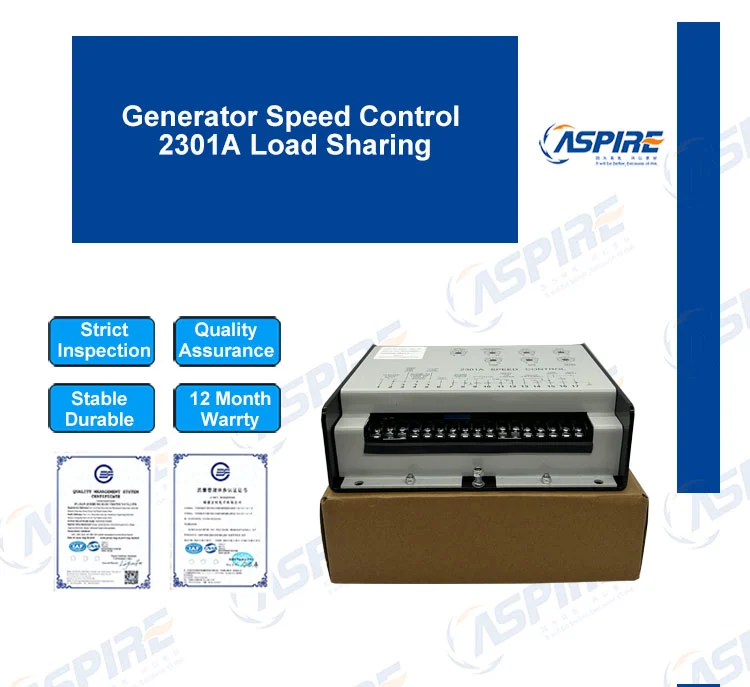

Generator Electronic Speed Control Board 2301A

2301A
Quantity:
0.00
Contact Now
add to cart
Buy Now
Product Name

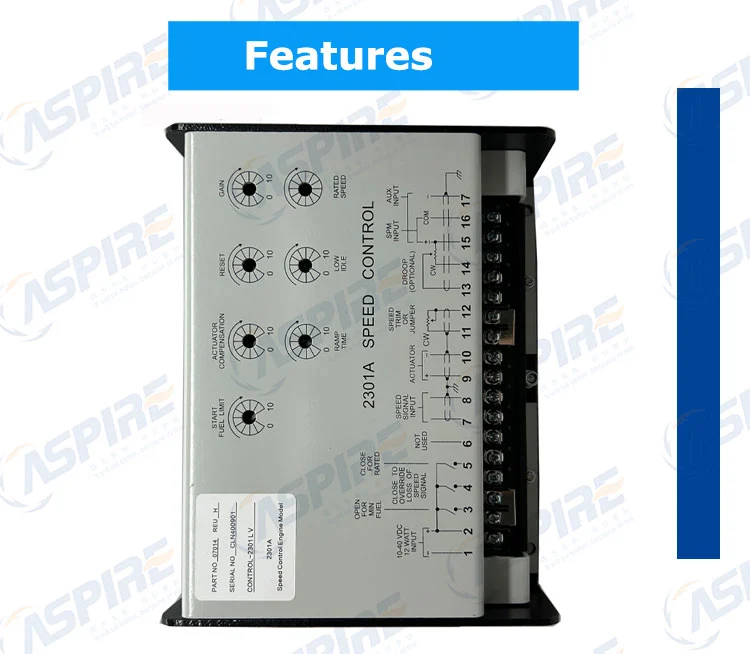

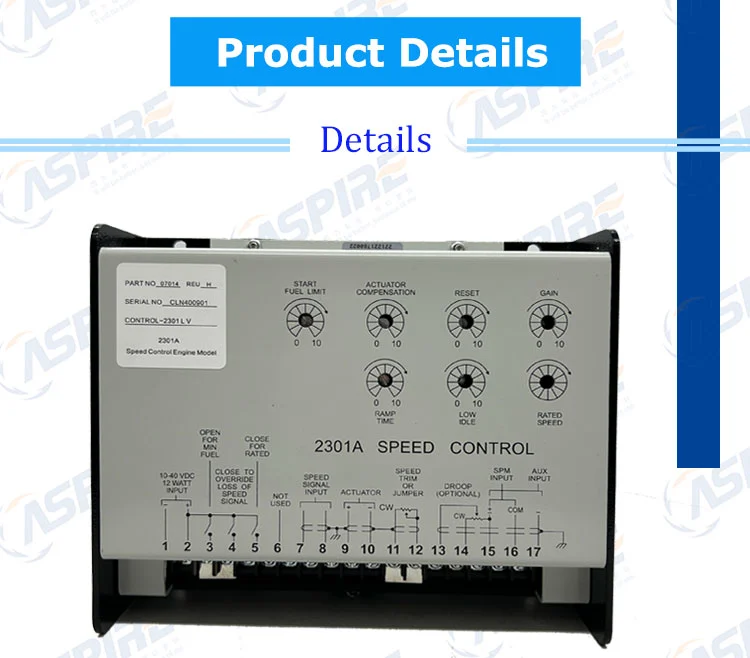

 Speed Control Board 2301A
Power supply voltage
20 ~ 32 VDC
Power Consumption
12 W
Speed Frequency range
Select the following four speed frequency ranges through DIP switches on the board500 ~ 1500 Hz 2000 ~ 6000 Hz 1000 ~ 3000 Hz 4000~ 12000 Hz
Speed input signal
1 ~ 30 Vrms, input AC impedance 1000 Ω / kHz, DC resistance of 300 Ω
External speed trim
100Ω potentiometer, providing ± 5% of the speed of adjustment
Raising speed time
5 ~ 35 s
Output position signal
0 ~ 200 mA, load impedance 30 ~ 45 Ω
Actuator Compensation
time constant adjustment range is 0 ~ 500 ms

2301A
2301A
2301A
2301A
