What is generator actuator ?

2023-05-29

A linear actuator is a device that causes an attached mechanical component (usually a rod) to produce linear motion. Linear motion is performed by a built-in motor

connected to a linear rod with gears of different sizes and proportions. When the motor rotates, the gear converts the rotational motion into linear motion.

Linear actuators typically use a DC (DC) brushed or brushless motor and a DC power supply, such as 12vdc or 24VDC. However, a DC motor is not required.

Stepper motors and induction motors can also move linear actuators, depending on the load and application. By reversing the power terminal, the direction of

motion of the actuator can be easily reversed.

The linear actuator contains sensors at both the smallest and largest ends to detect rod movement at both ends and, if needed, to stop further movement to prevent

damage to the internal components. Linear actuators are not fast, but can provide significant power. For this reason, linear actuators are used in applications that

require motion on weighted objects. Some linear actuators also include feedback signals indicating that their limits have been reached.

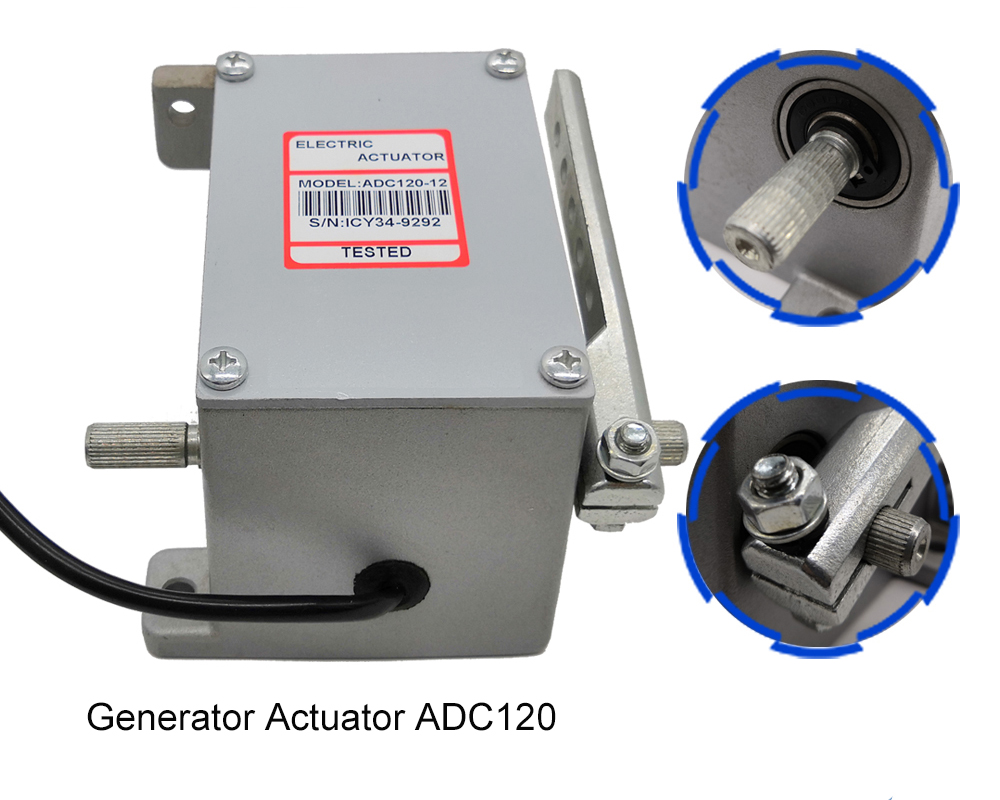

When there is no current, the linear rod cannot be moved to the initial position. Instead, it requires a DC voltage of opposite polarity to move the rod back to its initial position.The generator's electronic actuators are designed to provide fast, precise throttle control and replace the engine's mechanical throttle.

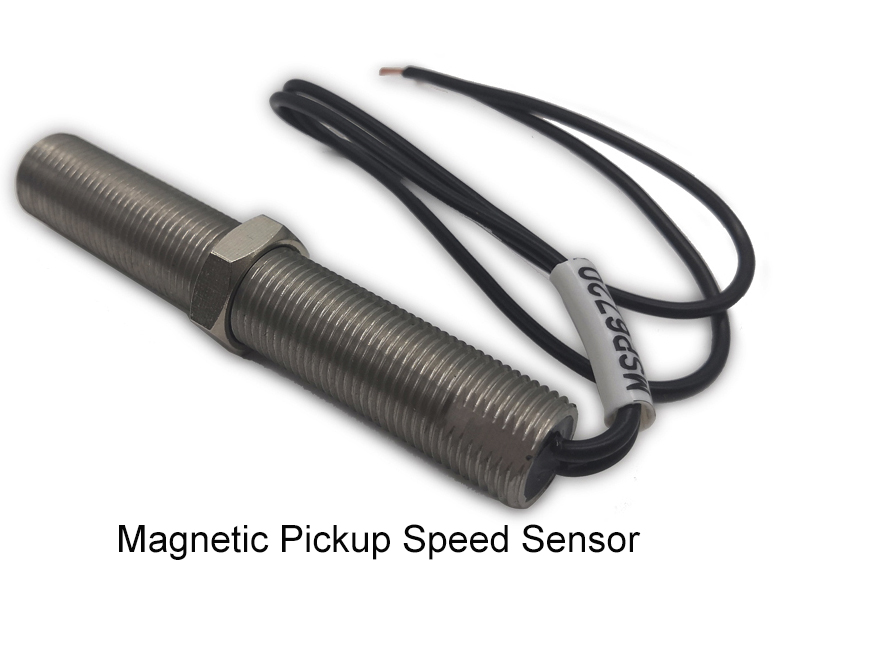

The electronic actuator is an integral part of the electronic control system, along with the electronic engine governor and the magnetic pickup sensor.

The load response of the engine and generator set will be improved. This is because the actuator responds 200 times faster than the mechanical throttle.
