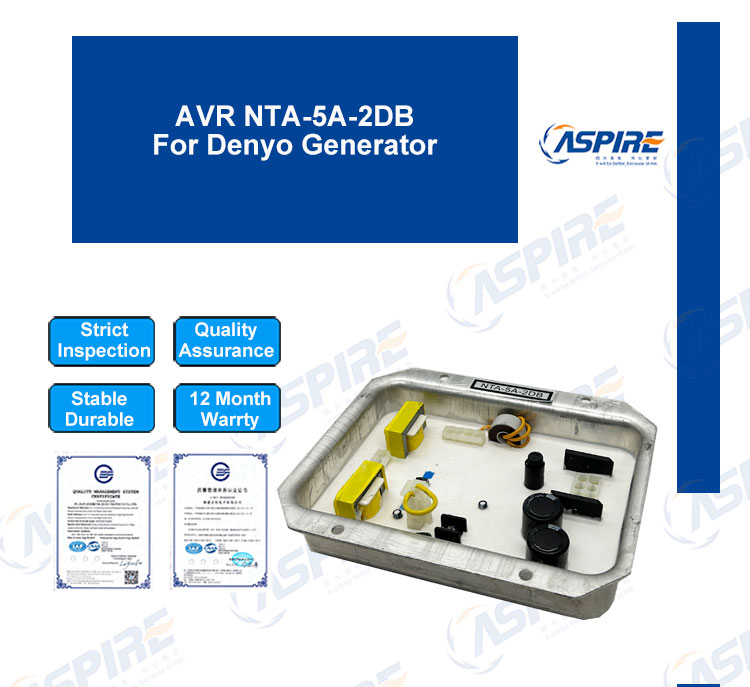

Automatic Voltage Regulator AVR NTA-5A-2DB For Denyo Generator

NTA-5A-2DB
Quantity:
0.00
Contact Now
add to cart
Buy Now

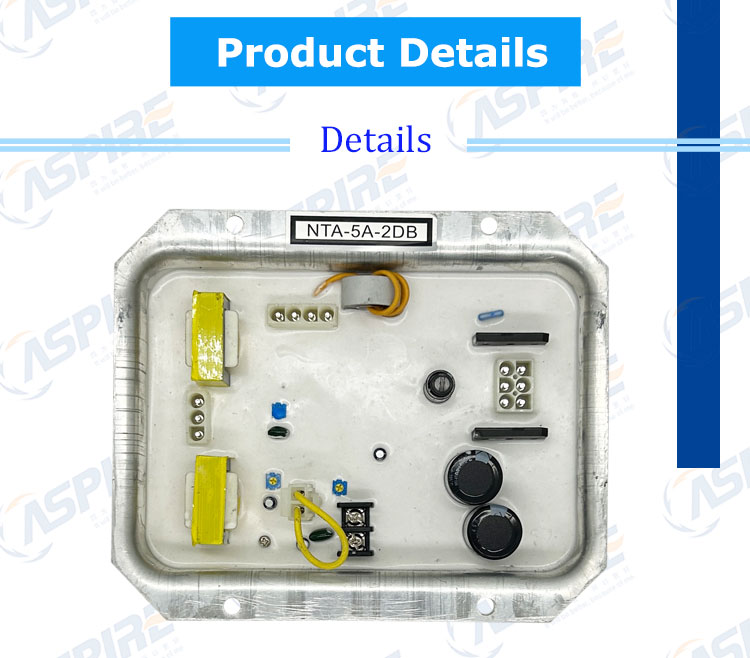

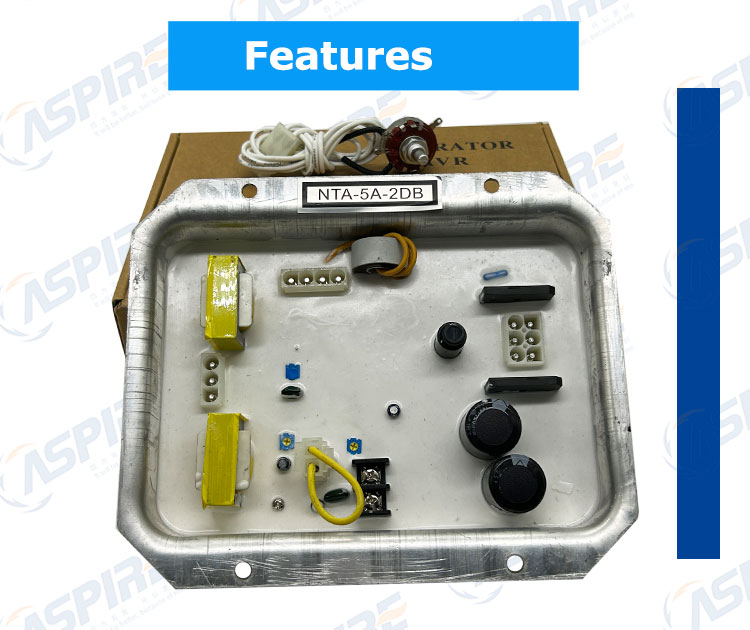

1.NTA-5A-2DB automatic voltage regulator (referred to as AVR for short) is a partially sealed electronic device designed
specifically for supporting electric generators
2. AVR realizes the automatic adjustment of the generator output voltage by controlling the excitation current of the
generator exciter.
3. High voltage stability, easy to use and automatic adjustment
4.Using high-quality materials, strong and durable, has a long service life
5. With small size, easy to carry and store, convenient to use and with good performance
Model
AVR NTA-5A-2DB For Denyo Generator
Auxiliary winding input
AC 5V-200V
Maximum excitation voltage output
120V/5ADC/10S
Main winding voltage input
400VAC,50HZ/60HZ
Low frequency protection adjustable
50HZ/60HZ
Generator field resistance
≥5Ω
Steady-state voltage regulation rate
≤±0.5%
Voltage adjustment range
≥15%
Minimum remanent excitation voltage
≥5V/30HZ
Packaging size
22.5x17.5x6 cm
Packing weight
1.2 kg
