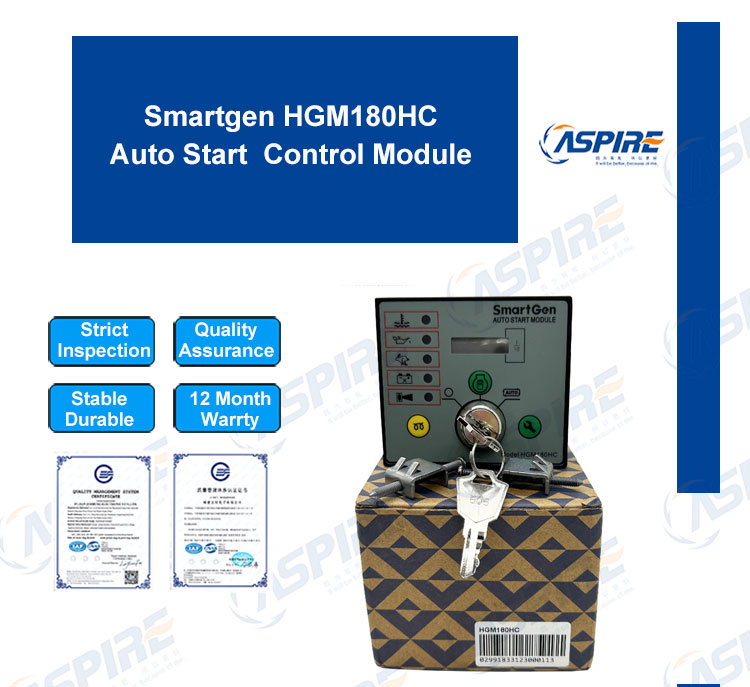

Smartgen HGM180HC Auto Start Control Module Generator Controller

HGM180HC
Quantity:
0.00
Contact Now
add to cart
Buy Now
The HGM180HC generator set controller is a self-starting module. Three working states can be selected by the electric lock.
The generator set can be started manually by touching the button on the panel, or the generator set can be automatically
started by remote signal input, and the fault can be detected (Low oil pressure, high water temperature/cylinder temperature, external alarm,overspeed) automatically cut off the fuel relay and shut down the electromagnet to be electrified.
The panel LED indicates the fault status and provides a true and effective fault alarm signal.
Model
             Smartgen HGM180HC Auto Start Control Module
Working Voltage
DC8.0V to 35.0V continuous
Power Consumption
Standby (12V: 0.12W, 24V: 0.24W)
Working (12V: 0.5W, 24V: 1W)
Alternator Voltage Input
15VAC - 360VAC (ph-N)
Alternator Rated Freq
50/60Hz
Condition of Crank
Generator voltage≥15VAC and frequency≥15Hz
Charge Failure Voltage
less than 3V
Package size
10X10X5 cm
Packing weight
0.3 kg
