What is Automatic transfer Switching equipment?

What is Automatic transfer Switching equipment?

At present, the equipment that can be used as emergency power supply includes ATS for automatic switching between two mains power supply, diesel generator power supply, uninterruptible power supply (UPS) power supply, battery power supply, EPS, etc. The application sites and advantages of the above equipment vary. ATS is also known as ATSE, is the abbreviation of Automatic Transfer Switching Equipment, national standard Chinese full name Automatic transfer switch, commonly known as double power Automatic transfer switch.

An ATS product is defined as an appliance consisting of one (or more) transfer switch appliances and other necessary appliances for detecting power supply circuits and automatically switching one or more load circuits from one power supply to another. Names of ATS, UPS, and EPS are confusing. EPS is the English abbreviation of Emergency Power Supply, the Chinese name is Emergency Power Supply device.

UPS stands for Uninterruptible Power Supply. ATS is the abbreviation of Automatic Transfer Equipment, the Chinese name of Automatic Transfer Switching Equipment. ATS is suitable for double power supply of key loads such as fire fighting in the field of construction, and EPS is suitable for EPS is to solve the emergency lighting, accident lighting, fire fighting facilities and other first-level load power supply equipment as the main goal, to provide an emergency power supply system with independent circuit in line with fire fighting specifications. UPS is mainly used to provide power supply for IT industry equipment, providing clean and uninterrupted backup power. The diesel generator can be used in conjunction with ATS, EPS, and UPS where backup power is needed for a long time.

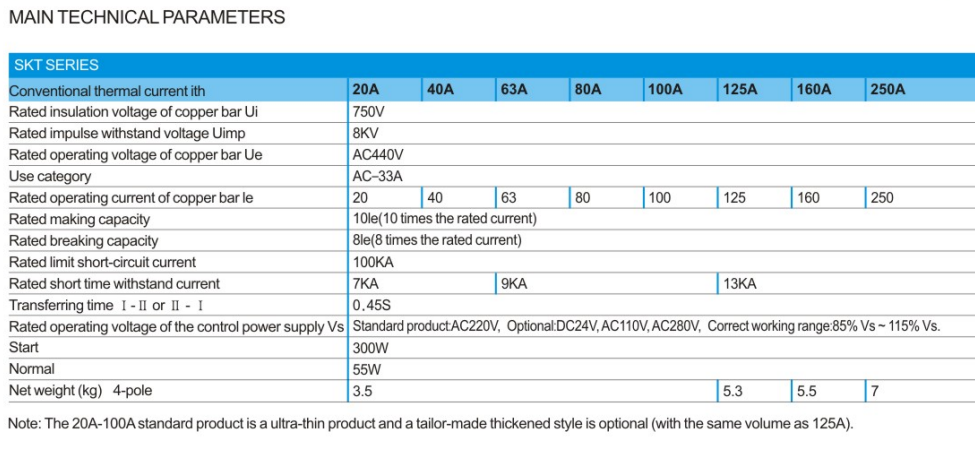

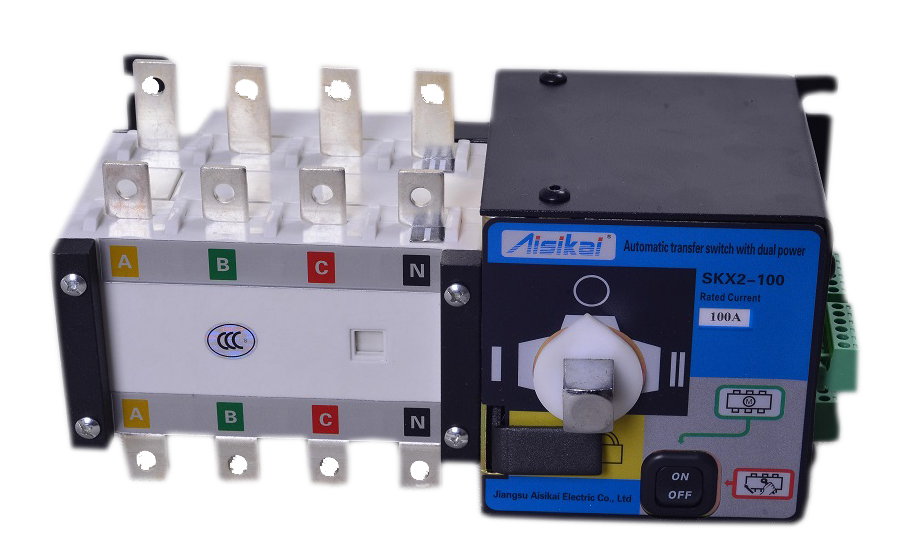

SKT series dual power automatic transfer switch is currently the most advanced third generation product, is Class PC in grade and is an AC-33A frequently operable electrical transfer switch in application category, which having such four working modes as automatic, electric, emergency manual and locking, is suitable to be used in the 50/60Hz 20A-3200A low voltage AC power distribution systems for reliable transfer
between two power supplies.

PERFORMANCE CHARACTERISTICS
●99.99% high purity T2 copper material
The dynamic and the static contacts are manufactured with T2 copper material, theirsurfaces are plated technically with pure silver and their breaking capacity is much higher than the that of the welding silver-point switches.

●DMC Main body
The main body of DMC is reinforced with unsaturated polyester glass fiber material, which is extremely high in the mechanical strength and the insulation performance and,compared with the ordinary ABS, is characteristic of such advantages as high strength,corrosion resistance and fire retardancy.

●Self-restoring drive motor
Selection of polychloroprene rubber insulation damp & heat type motor or permanent-magnet synchronous motor (patent technology), which is large in torque, low in noise,long in service life, is provided with overheating and over-current self-restoring protectionand is better than that of the electromagnet in the comprehensive performance.

●Components & elements brand assurance
The electronic components & elements adopted are those of the well- known brands andthe master control board is the product produced in the domestic front-line electronicOEM factory, which is treated with three anti-process, thus making them reliable in use,
high in performance and long in service life.
