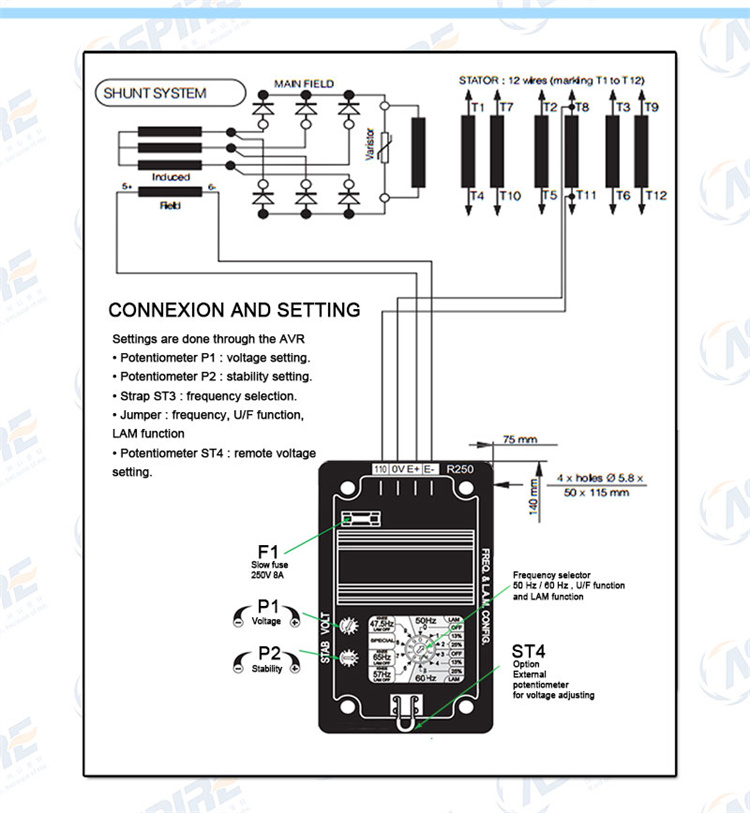

Circuit Diagram Card Generator AVR R250

R250 self excited brushless type genset voltage regulator is a compatible replacement for LS Series .

Product Name	Generator AVR R250
Sensing/Power input	Voltage	120(90-140)Vac,1 phase 2 wire jumper selectable
	Frequency	50/60 Hz jumper selectable
Output	Voltage	Max. 100 Vdc at 120 Vac input
	Current	Continuous 8A,Intermittent10A-10s
Voltage Regulation	< +/-1% (with 4% engine governing)

* Voltage regulation < +/-1%
* Soft start voltage ramping
* Sensing voltage loss protection
* 120 or 240 Vac sensing, jumper selectable
* Under frequency roll off protection
* With under frequency LED indicator
