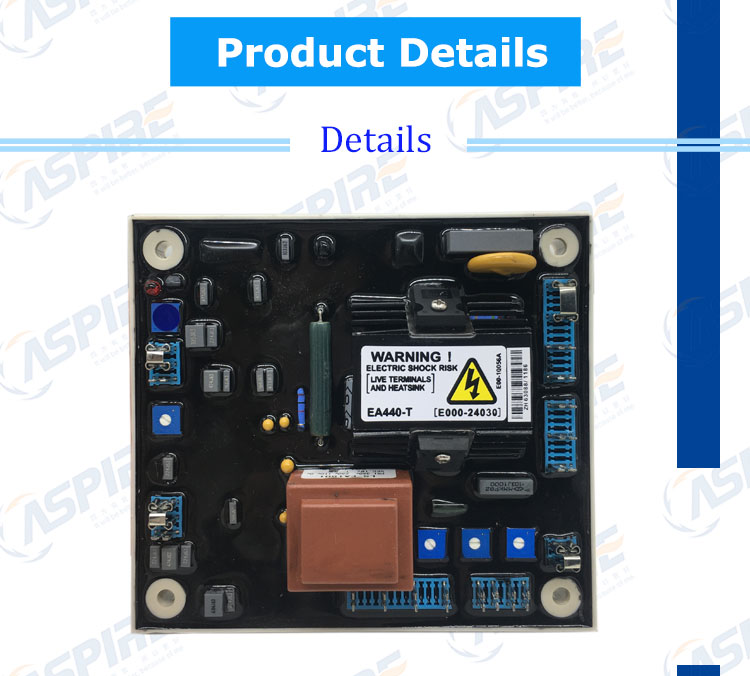

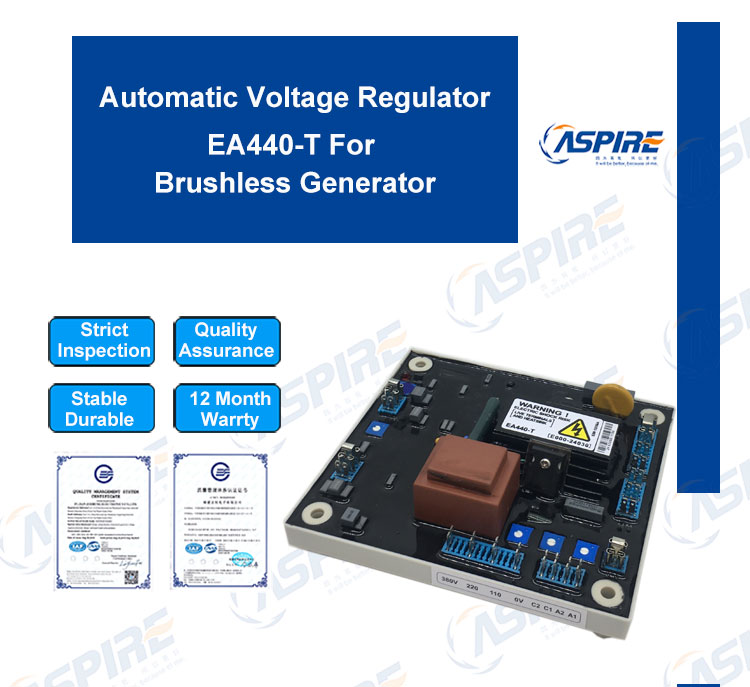

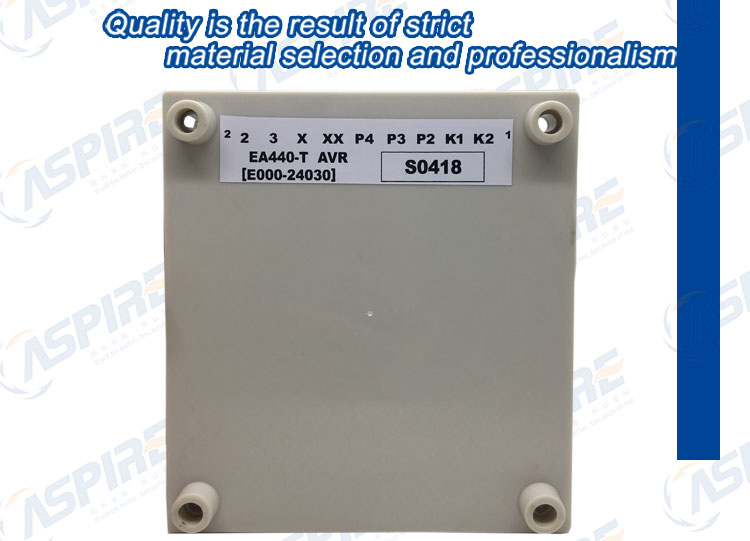

Generator AVR Circuit Diagram EA440-T
EA440-T
Quantity:
0.00
Generator AVR Circuit Diagram EA440-T
Sensing Input
Voltage 90 ~ 520 VAC, 1 phase 2 wire
Frequency 50 / 60 Hz, selectable
Output
Voltage Max. 90 VDC @ 207 VAC
Current Continuous 4A Intermittent 10A for 10 sec.
Resistance Min. 15 ohm
Voltage Regulation
< ± 1% ( with 4% engine governing )
Voltage Build-up
Residual voltage at AVR terminal > 5 VAC
Thermal Drift
0.05% per C change in AVR ambient
External Volts Adjustmen
±8% with 1K ohm 1 watt trimmer
Unit Power Dissipation
Max. 12 watt
Under Frequency Protection
Set point95% Hz
