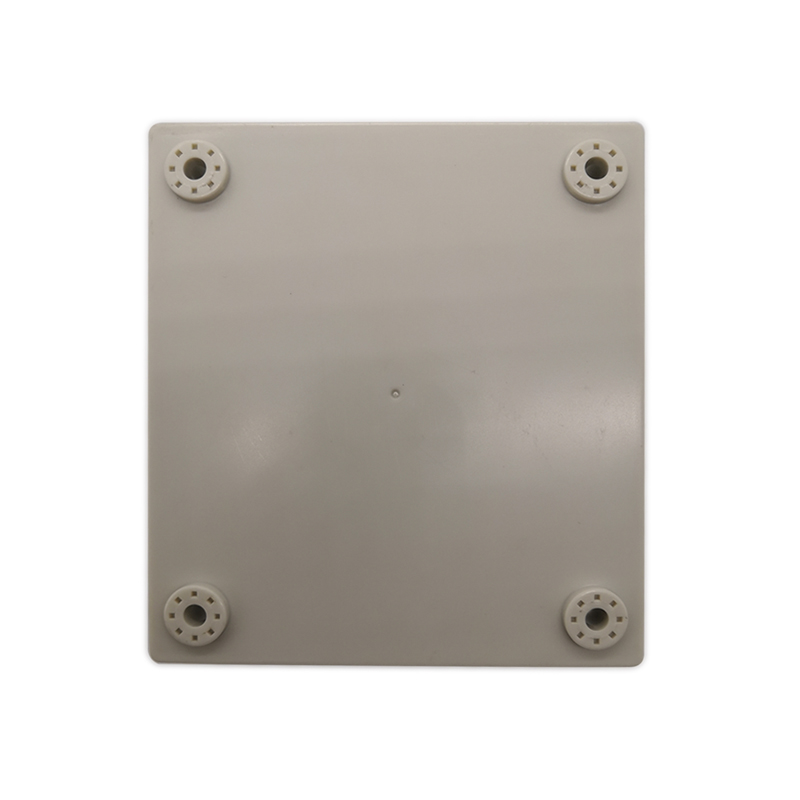

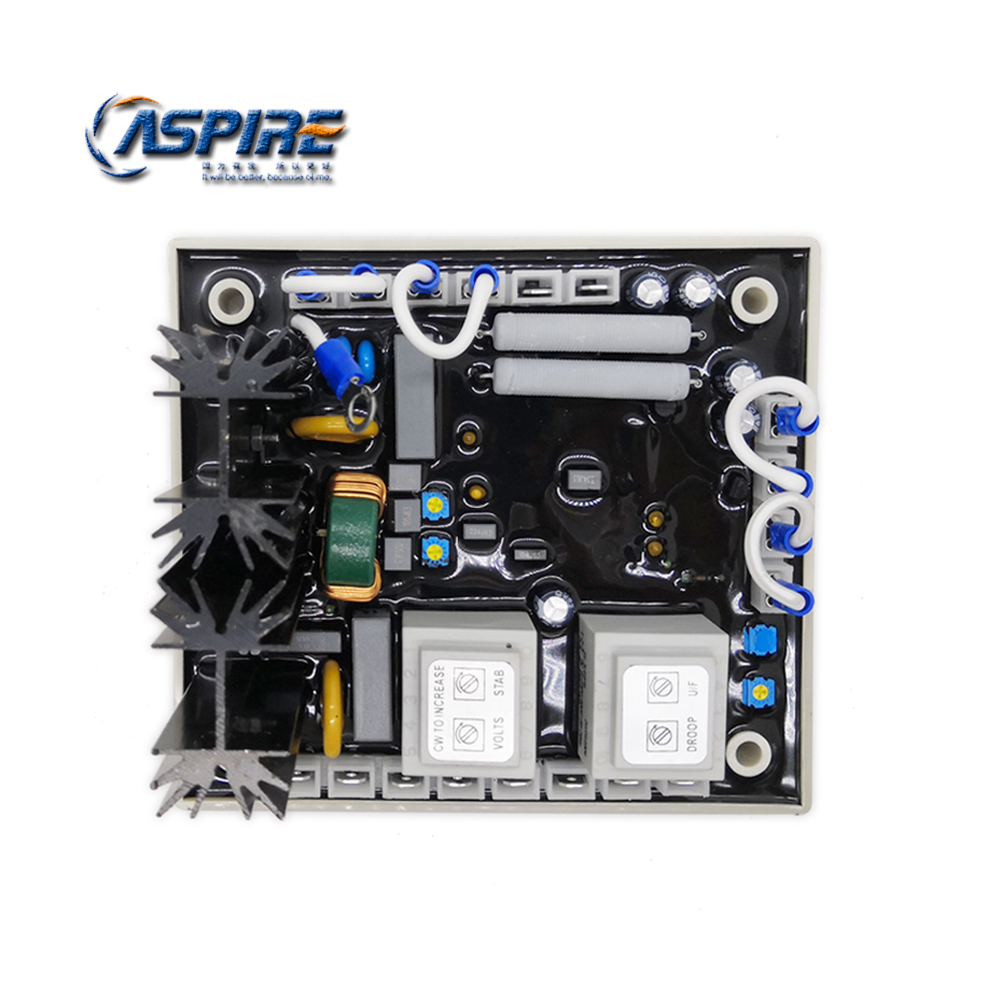

AVR EA63-7D

Generator AVR Circuit Diagram EA63-7D

EA63-7D
Quantity:
0.00
Contact Now
add to cart
Buy Now

Generator AVR Circuit Diagram EA63-7D

Sensing Input
Voltage 220 / 440 VAC ± 10%, 1 phase
Frequency 50 / 60 Hz selectable
Power Input
Voltage 180~260 VAC ± 10%, 1phase 2wire
Frequency 50 / 60 Hz
Output
Voltage Max.63 VDC
Current Continuous 7A
Intermittent 15A for 10 sec
Resistance Min. 6 ohm Max. 105 ohm
Voltage Regulation
< ± 1% ( with 4% engine governing )
Voltage Build-up
Residual voltage at AVR terminal > 5 VAC
Voltage Adjustable Range
180 ~ 277 VAC @220V
360 ~ 554 VAC @440V
Thermal Drift
0.05% per °C change in AVR ambient

AVR EA63-7D
