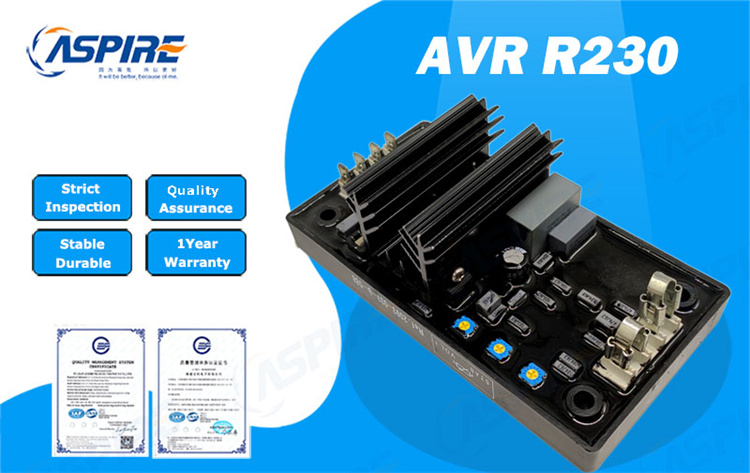

Generator Spare Parts Accessories AVR R230

AVR R230

220v voltage regulator AVR R230 for power generator is a half-wave phase controlled thyristor type Auto Voltage Regulator and forms part of the excitation system for a brushless generator.Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of ± 1.5%.
Generator Spare Parts Accessories AVR R230
Magnetic field output
Voltage
Max 100VDC at 120VCD input,
Current
Continous 8A,intermittent 10A-10S
Power input
120(90-140)VAC,1 phase 2 wires,
Voltage Regulation
<±1% RMS with 4% engine governing

AVR R230
AVR R230
AVR R230
